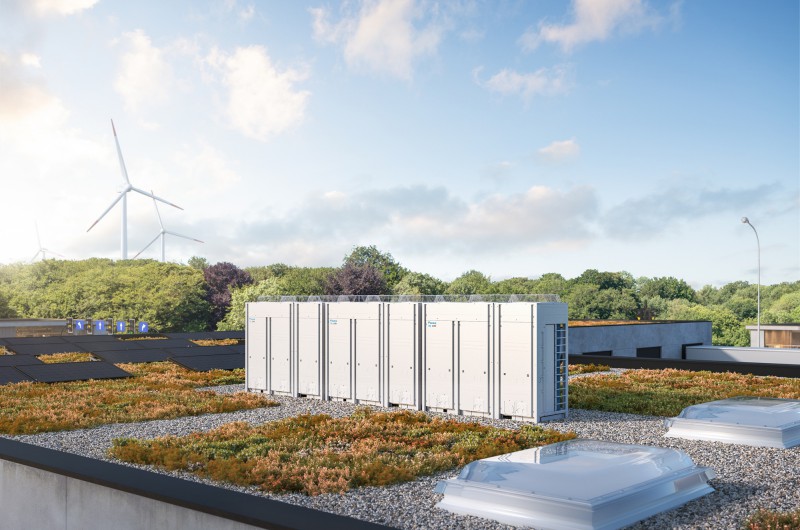

NEW! Daikin RXYN-B CO2 VRV

The increasing demand for commercial air conditioning systems with low GWP makes Daikin’s new CO2 VRV the perfect choice to achieve BREEAM / LEED.

Daikin’s RXYN-B uses HFC-free refrigerant CO2 (R-744) with a low GWP of 1, making it one of the most sustainable refrigerants on the market.

It enables you to deliver projects requiring “natural” refrigerants: A non-flammable (A1) refrigerant, simplifying system design.

RXYN-B incorporates all typical VRV benefits:

- Quick and easy to design and install

- Precise zone control with quick response to changing load

- Connectable to Daikin’s latest controllers such as Daikin Cloud Plus.


Benefits of CO2 R-744

• R-744 is a “natural” refrigerant
• Low GWP value of 1, making it one of the most sustainable refrigerants
• Classified as non-flammable (A1), simplifying system design.


Benefits of CO2 VRV

• Enables you to deliver projects requiring “natural” refrigerants
• Maximise your BREEAM / LEED refrigerant score, thanks to the low GWP of 1
  • BREEAM V7: 3 of 3 credits in Pollution 01
  • LEED V5: 2 of 2 points in Enhanced Refrigerant Management


Roundflow Cassette for CO2 VRV R-744

Newly designed for the new CO2 VRV, is Daikin’s Roundflow ceiling cassette, FXFN-B.

Available in white or black, with or without the self-cleaning panel, the FXFN-B delivers 360° air discharge for optimum efficiency and comfort.

Features include:

• Floor and presence sensor
• Auto-cleaning filter
• A range of decoration panels: designer panels in white (RAL9010) and black (RAL9005) and standard panels in white (RAL9010) with grey louvres or full white
• Optimised design for CO2 refrigerant (R-744)
• Bigger flaps and unique swing pattern, and individual flap control
• Lowest installation height in the market: 214mm for class 20-63
• UV streamer kit - purifies the air of pollutants such as viruses, bacteria, fine dust (PM1.0), odours, allergens, etc.
• Optional fresh air intake
• Standard drain pump with 675mm lift


Concealed Ceiling Unit for R-744

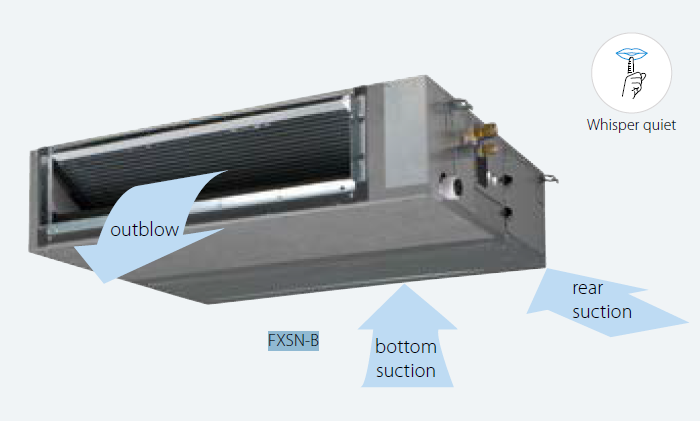

Again, redesigned for R-744, Daikin’s CO2 VRV Concealed ceiling unit - FXSN-B - is the slimmest, most powerful medium static pressure unit on the market.

• Only 245mm (300mm built-in height)
• Quiet operation: down to 25dBA
• Medium external static pressure up to 150Pa facilitates using flexible ducts of varying lengths
• Possibility to change ESP via wired remote control allows optimisation of the supply air volume
• Discretely concealed in the wall: only the suction and discharge grilles are visible
• 15 class unit, developed for small or well-insulated rooms such as hotel bedrooms or small offices
• Optional fresh air intake
• Fresh air intake integrated in the same system
• Standard built-in drain pump with 625mm lift.



Please get in touch for further technical support or to discuss any low GWP applications.
